245 KVAR APFC PANEL A 245 KVAR APFC (Automatic Power Factor Correction) Panel is an electrical control panel used to improve power factor in industrial and commercial installations. It helps reduce power losses, avoids penalties from electricity boards, and increases the efficiency of the electrical system. Here are the key details about a 245 KVAR APFC Panel: 🔹 What it is APFC = Automatic Power Factor Correction. It automatically switches capacitor banks in and out based on the load requirement to maintain the desired power factor (typically above 0.95). The capacity here is 245 KVAR, meaning the panel can provide up to 245 kilo-volt-ampere reactive power compensation. 🔹 Technical Specifications (Typical) Capacity: 245 KVAR Voltage: 415V ±10% Frequency: 50 Hz Controller: Microprocessor-based APFC relay with multiple steps Capacitor Banks: Heavy-duty, low-loss, APP / MPP capacitors with detuned reactors (if required) Steps: Divided in multiple stages (e.g., 5 KVAR, 10 KVAR, 25 KVAR, 50 KVAR, etc. to reach 245 KVAR) Switching Device: Contactors / Thyristor-based switching (for fast response) Enclosure: MS powder-coated sheet metal, floor-mounted, IP42 / IP54 protection 🔹 Features Improves the power factor automatically. Reduces maximum demand charges. Minimizes penalty from utility providers. Enhances system efficiency by reducing reactive power. Protects against harmonics and resonance (if detuned reactors are used). Digital display for voltage, current, power factor, and step status. 🔹 Applications Large industries (steel, textile, cement, chemicals, etc.) Commercial complexes, malls, hospitals, hotels Any facility with heavy inductive loads like motors, compressors, HVAC systems Would you like me to create a detailed technical datasheet format (PDF/Word style) for a 245 KVAR APFC Panel that you can share with customers? You said: 1250 AMP MCC PANEL ChatGPT said: A 1250 Amp MCC (Motor Control Center) Panel is a centralized system for controlling multiple motors in industrial and commercial applications. It houses feeders, starters, protection devices, and monitoring systems, all integrated into one panel, designed to handle up to 1250 Amperes of current. Here’s a detailed breakdown: 🔹 What is an MCC Panel? An MCC Panel is used for controlling, protecting, and monitoring electric motors. It consists of motor starters, circuit breakers, fuses, contactors, overload relays, and metering devices. A 1250 Amp MCC Panel is designed for heavy-duty industries where multiple large motors are operated simultaneously. 🔹 Technical Specifications (Typical) Rated Current: 1250 Amps Rated Voltage: 415V ±10% (3 Phase, 50 Hz) Bus Bar Rating: Copper / Aluminum, 1250 Amps, insulated & color-coded Bus Bar Support: SMC / DMC, tested for temperature rise and short-circuit Fault Level: 50 kA / 65 kA / 100 kA (as per requirement) Ingress Protection: IP42 / IP54 / IP65 (as per site condition) Enclosure: CRCA sheet steel, powder-coated, floor-mounted Sections: Draw-out / Non-draw-out type feeders Cable Entry: Top / Bottom Control Voltage: 110V / 220V AC or 24V DC 🔹 Features Modular design for easy maintenance and expansion. Equipped with ACB (Air Circuit Breaker) or MCCB for incomer. Motor feeders with DOL / Star-Delta / VFD / Soft starter options. Overload, short-circuit, earth fault protection. Digital meters for voltage, current, power factor, frequency, kW, kVA, kVAR. SCADA / PLC / IoT compatibility for remote monitoring (optional). Energy-efficient design with copper busbars for minimal losses. 🔹 Applications Heavy industries: Cement, Steel, Chemicals, Pharmaceuticals, Paper, Food Processing. Utilities: Water treatment plants, Sewage plants, HVAC systems. Large commercial complexes, data centers, hospitals, airports.

245 KVAR APFC PANEL Manufacturers A 245 KVAR APFC (Automatic Power Factor Correction) Panel is an electrical control panel used to improve power factor in industrial and commercial installations. It helps reduce power losses, avoids penalties from electricity boards, and increases the efficiency of the electrical system. Here are the key details about a 245 KVAR APFC Panel: 🔹 What it is APFC = Automatic Power Factor Correction. It automatically switches capacitor banks in and out based on the load requirement to maintain the desired power factor (typically above 0.95). The capacity here is 245 KVAR, meaning the panel can provide up to 245 kilo-volt-ampere reactive power compensation. 🔹 Technical Specifications (Typical) Capacity: 245 KVAR Voltage: 415V ±10% Frequency: 50 Hz Controller: Microprocessor-based APFC relay with multiple steps Capacitor Banks: Heavy-duty, low-loss, APP / MPP capacitors with detuned reactors (if required) Steps: Divided in multiple stages (e.g., 5 KVAR, 10 KVAR, 25 KVAR, 50 KVAR, etc. to reach 245 KVAR) Switching Device: Contactors / Thyristor-based switching (for fast response) Enclosure: MS powder-coated sheet metal, floor-mounted, IP42 / IP54 protection 🔹 Features Improves power factor automatically. Reduces maximum demand charges. Minimizes penalty from utility providers. Enhances system efficiency by reducing reactive power. Protects against harmonics and resonance (if detuned reactors are used). Digital display for voltage, current, power factor, and step status. 🔹 Applications Large industries (steel, textile, cement, chemicals, etc.) Commercial complexes, malls, hospitals, hotels Any facility with heavy inductive loads like motors, compressors, HVAC systems Would you like me to create a detailed technical datasheet format (PDF/Word style) for a 245 KVAR APFC Panel that you can share with customers? You said: 1250 AMP MCC PANEL ChatGPT said: A 1250 Amp MCC (Motor Control Center) Panel is a centralized system for controlling multiple motors in industrial and commercial applications. It houses feeders, starters, protection devices, and monitoring systems, all integrated into one panel, designed to handle up to 1250 Amperes of current. Here’s a detailed breakdown: 🔹 What is an MCC Panel? An MCC Panel is used for controlling, protecting, and monitoring electric motors. It consists of motor starters, circuit breakers, fuses, contactors, overload relays, and metering devices. A 1250 Amp MCC Panel is designed for heavy-duty industries where multiple large motors are operated simultaneously. 🔹 Technical Specifications (Typical) Rated Current: 1250 Amps Rated Voltage: 415V ±10% (3 Phase, 50 Hz) Bus Bar Rating: Copper / Aluminum, 1250 Amps, insulated & color-coded Bus Bar Support: SMC / DMC, tested for temperature rise and short-circuit Fault Level: 50 kA / 65 kA / 100 kA (as per requirement) Ingress Protection: IP42 / IP54 / IP65 (as per site condition) Enclosure: CRCA sheet steel, powder-coated, floor-mounted Sections: Draw-out / Non-draw-out type feeders Cable Entry: Top / Bottom Control Voltage: 110V / 220V AC or 24V DC 🔹 Features Modular design for easy maintenance and expansion. Equipped with ACB (Air Circuit Breaker) or MCCB for incomer. Motor feeders with DOL / Star-Delta / VFD / Soft starter options. Overload, short-circuit, earth fault protection. Digital meters for voltage, current, power factor, frequency, kW, kVA, kVAR. SCADA / PLC / IoT compatibility for remote monitoring (optional). Energy-efficient design with copper busbars for minimal losses. 🔹 Applications Heavy industries: Cement, Steel, Chemicals, Pharmaceuticals, Paper, Food Processing. Utilities: Water treatment plants, Sewage plants, HVAC systems. Large commercial complexes, data centers, hospitals, airports. 👉 Would you like me to prepare a professional datasheet / catalog-style content (PDF/Word) for the 1250 Amp MCC Panel, similar to an OEM product brochure, that you can directly share with clients? ChatGPT can make mistakes. Check important info. See Cookie Preferences.

ACB Distribution Panel Manufacturer We also supply in Ahmedabad, Amreli, Banaskantha, Bharuch, Bhavnagar, Dang, Jamnagar, Junagadh, Kheda, Kachchh, Mehsana, Panchmahal, Rajkot, Sabarkantha, Surat, Surendranagar and Vadodara. Shrinath Electric” are a Sole Proprietorship based firm, engaged as the foremost Manufacturer And Retailer of ACB Distribution Panel ,PLC Panel, MCC Panel, APFC Panel and many more.

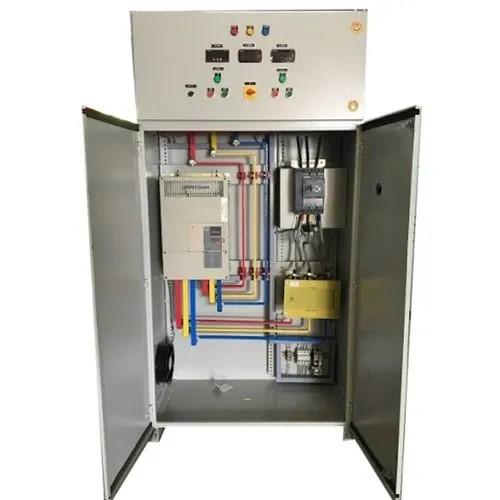

150 HP VFD Control Panel Manufacturers We also supply in Ahmedabad, Amreli, Banaskantha, Bharuch, Bhavnagar, Dang, Jamnagar, Junagadh, Kheda, Kachchh, Mehsana, Panchmahal, Rajkot, Sabarkantha, Surat, Surendranagar and Vadodara. Established in the year 1995 at Ahmedabad, Gujarat, We “Shrinath Electric” are a Sole Proprietorship based firm, engaged as the foremost Manufacturer And Retailer of PLC Panel, MCC Panel, APFC Panel and many more.

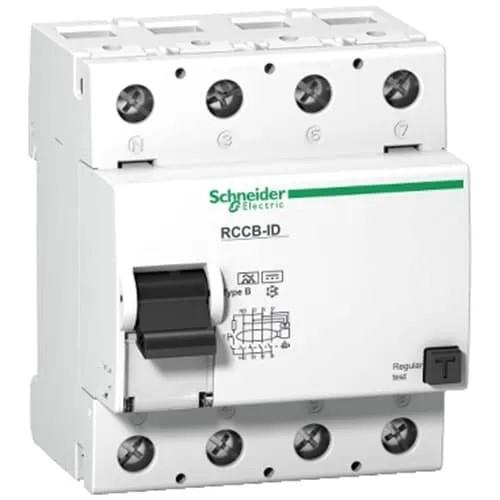

Residual Current Circuit Breakers Manufacturers RCB distributed by Shrinath Electric provides RCCB with Residual Current Sensitivity – 10mA, 30mA, 100mA, 300mA, 500mA, 1000mA and Different Residual Current Sensitivity Tripping level serves a purpose. The recommended tripping level for max shock protection is 30mA which is provided by us as well. Note: A tripping level of 100 mA will still give a degree of shock protection if it’s unfeasible to use a 30mA device. While a 300mA should never be used for shock protection, its purpose is to supply fire and equipment protection. We also trade 2 Pole RCCB, which is employed just in case of a single-phase supply connection with only a live and a neutral wire. 3 Pole RCCB is analogous to a 4 Pole RCCB, but it only has three wires of a three-phase system. 4 Pole RCCB is used just in case of a three-phase supply connection also a further connection for the neutral of the availability. Providing topnotch after sales services is our topmost priority. Even though electricity has become a necessity in our lives, it comes with its own set of risks to human health and safety and property damage. Given the high risk of electrocution and fire from electricity, all electrical equipment must be adequately insulated. RCCB Panel Board Suppliers in GujaratRCCB Panel Board Dealers in Gujarat RCCB Panel Board Suppliers & Dealers in Ahmedabad, India A Residual Current Circuit Breaker (RCCB) is a critical safety safeguard when it comes to electrical circuit protection. If a problem develops in the connected circuit or if the current exceeds the rated sensitivity, the gadget acts as a current sensor device. It can measure and disconnect the connection automatically. As a result of Kirchhoff’s law, RCCB ensures a constant current flow in all circuits it inspects. RCCB compares the difference between the live and neutral wire current levels as a result. In an ideal world, the circuit’s live and neutral wires should have equal amounts of current. Reducing the neutral wire’s current when there is a problem is known as Residual Current. The RCCB trips off the circuit when it detects a Residual Current. The RCCB’s reliability is evaluated using a test circuit included with the Residual Current Device. A small number of current flows through the test circuit as soon as the test button is pressed. The RCCB tripped, and the supply was removed because it caused an imbalance on the neutral coil of the device. The circuit is automatically disconnected when the rated sensitivity is surpassed, protecting against earth faults and leakage currents. The RCCB also offers dual termination for cable and busbar connections. We, RCCB manufacturers, can help you to solve your problem. Features a filtering device to protect against transient voltage levels, which reduces the risk of voltage fluctuations.

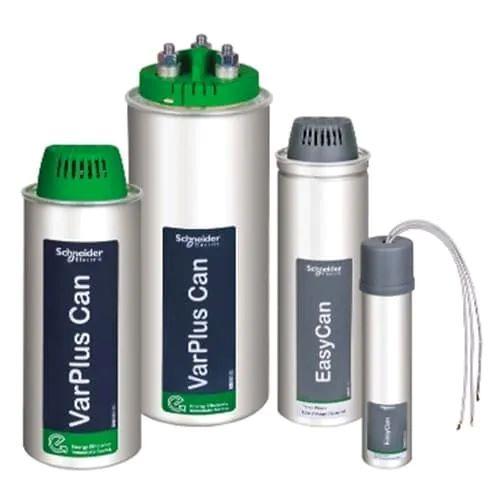

Power Capacitor Manufacturers in India Power capacitors provided by Shrinath Electric includes capacitor of tantalum (both solid and wet), ceramic (both multilayer chip and disk), film, power, heavy-current, and aluminum. Shrinath Electric is one of the top distributors of capacitors for power electronics. We deal altogether varieties of capacitors viz, Pole-mounted, Metal-enclosed, Mobile, Open-air, Specialty application. Providing topnotch after sales services is our topmost priority. The passive component used to store electrical energy is known as a capacitor. The dielectric substance separates two conductors to form a capacitor. These charge-accumulating dielectric materials come in the shape of plates. A positive charge goes on one plate, and a negative charge goes on the other. For example, small, sensitive trimming capacitors can be employed with an oscillator or radio circuits. In contrast, massive metal-can type capacitors are utilized in high-voltage power correction and smoothing circuitry. These three types of capacitors can be identified by their structure: fixed, variable, and trimmer. Power Capacitor Dealers in Gujarat There are two types of capacitors: Capacitors can be characterized as either polarised or unpolarized based on their polarization. A polarised capacitor, also known as an electrolytic capacitor, is crucial for any electronic circuit. High capacitive density can be achieved by using these capacitors. Unlike polarised capacitors, which are destroyed by reverse voltage, unpolarized capacitors can be utilized in pure AC circuits. Because they lack positive and negative ends, they are also helpful in direct current (DC) circuits. The unpolarized capacitor has a high frequency but a low leakage current. For more information, you can contact us, the power capacitors manufacturers.

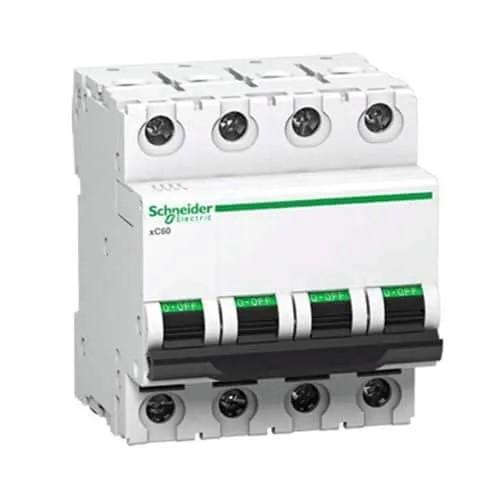

Electrical MCB Breaker Supplier Shrinath Electric is a well-known Electrical MCB breaker supplier that has been providing high-quality products to customers for many years. Our expertise in the electrical industry has earned it a reputation for delivering products that meet the highest standards of safety and quality. Shrinath Electric’s MCB breakers are designed to protect electrical circuits from overloads and short circuits, ensuring that electrical appliances and devices function smoothly. We have a wide range of MCB breakers that cater to the diverse needs of customers. Shrinath Electric’s MCB breakers are available in various sizes, ranging from 1A to 63A, to suit the specific requirements of different applications. The products are also available in different poles, such as single pole, double pole, triple pole, and four pole, to meet the varied needs of customers. mcb panel manufacturers in india Shrinath Electric takes pride in its commitment to delivering high-quality products that meet the needs of customers. Our MCB breakers are manufactured using the latest technology and undergo rigorous quality checks to ensure that they meet the highest safety standards as well as are also competitively priced, making them an affordable option for customers. Our MCB breakers are designed to be easy to install and maintain, saving customers time and money in the long run. Shrinath Electric’s technical team is available to provide expert guidance on the installation and maintenance of its MCB breakers, ensuring that customers get the most out of our products.

ACB Electrical Panel Manufacturers Find here ACB Distribution Panel, Schneider ACB Dealer, ACB electrical panel Wholesale & Dealers in India If you’re in need of an ACB electrical panel, look no further than Shrinath Electric. We are a leading manufacturer of ACB electrical panels, and our products are known for their reliability, efficiency, and durability. Our team of experts uses the latest technology and manufacturing processes to ensure that our panels meet the highest standards of quality, helping you to power your electrical systems with ease. ACB Distribution Panel Supplier in Gujarat At Shrinath Electric, we understand that every customer is unique, which is why we take a personalized approach to every project. Our team will work closely with you to understand your needs and design a custom ACB electrical panel that meets your requirements. We use only the best quality materials and components in our products, so you can rest assured that your investment is built to last. Contact us today to learn more about our ACB electrical panel manufacturing services and how we can help you take your operations to the next level. acb electrical panel manufacturers Schneider ACB Dealer Shrinath Electric is a trusted dealer of Schneider ACBs, one of the most advanced and reliable circuit breakers available in the market today. As a dealer of Schneider ACBs, we offers customers access to products that meet the highest safety standards and are designed to withstand harsh operating conditions. The team of experts at Shrinath Electric has extensive knowledge and expertise on the features and benefits of Schneider ACBs, which they share with customers to help them select the right product for their specific applications. We also provide excellent after-sales support to ensure customers get the most out of their Schneider ACBs. L&T ACB Circuit Breaker Shrinath Electric is a leading supplier of L&T ACB circuit breakers, known for their superior performance and durability. We offer a comprehensive range of L&T ACB circuit breakers that cater to different voltage and current ratings, making them suitable for a wide range of applications. L&T ACB circuit breakers are equipped with advanced features such as current limiting technology, short-circuit breaking capacity, and thermal magnetic protection, ensuring maximum protection against electrical faults. As a supplier of L&T ACB circuit breakers, Shrinath Electric provides customers with high-quality products and reliable service, ensuring customer satisfaction. Our team of experts is always available to provide technical assistance and support to help customers select the right L&T ACB circuit breaker for their specific needs.

Shrinath Electric is a well-known Electrical MCB breaker supplier that has been providing high-quality products to customers for many years. Our expertise in the electrical industry has earned it a reputation for delivering products that meet the highest standards of safety and quality. Shrinath Electric’s MCB breakers are designed to protect electrical circuits from overloads and short circuits, ensuring that electrical appliances and devices function smoothly. We have a wide range of MCB breakers that cater to the diverse needs of customers. Shrinath Electric’s MCB breakers are available in various sizes, ranging from 1A to 63A, to suit the specific requirements of different applications. The products are also available in different poles, such as single pole, double pole, triple pole, and four pole, to meet the varied needs of customers. mcb panel suppliers in india Shrinath Electric takes pride in its commitment to delivering high-quality products that meet the needs of customers. Our MCB breakers are manufactured using the latest technology and undergo rigorous quality checks to ensure that they meet the highest safety standards as well as are also competitively priced, making them an affordable option for customers. Our MCB breakers are designed to be easy to install and maintain, saving customers time and money in the long run. Shrinath Electric’s technical team is available to provide expert guidance on the installation and maintenance of its MCB breakers, ensuring that customers get the most out of our products.

MCCB Distribution Panel MCCB distribution panels are an important component of any electrical distribution system. They are designed to provide circuit protection and control, ensuring the safe and efficient operation of electrical equipment. Shrinath Electric is a leading manufacturer of MCCB distribution panels, providing a range of products that meet the diverse needs of their customers. The MCCB distribution panels manufactured by Shrinath Electric are made using high-quality materials and advanced technology, ensuring that they can withstand harsh operating conditions. They are available in a range of sizes and configurations, making it easy for customers to find a product that meets their specific needs. Shrinath Electric also provides customization services, allowing customers to design MCCB distribution panels that are tailored to their specific requirements.

MCCB Electrical Panel MCCB electrical panels are another crucial product that Shrinath Electric provides. These panels are designed to provide circuit protection and control, ensuring the safety and efficiency of electrical systems. Shrinath Electric offers a comprehensive range of MCCB electrical panels that are suitable for various applications. The MCCB electrical panels manufactured by Shrinath Electric are designed to deliver high performance and reliability. They are made using the latest technology and high-quality components, ensuring that they can withstand extreme conditions. These panels are available in different sizes and configurations, allowing customers to choose a product that meets their specific needs. Shrinath Electric also provides customization services, allowing customers to design panels that are tailored to their specific requirements.

Molded Case Circuit Breaker Panel Manufacturers We also supply in Ahmedabad, Amreli, Banaskantha, Bharuch, Bhavnagar, Dang, Jamnagar, Junagadh, Kheda, Kachchh, Mehsana, Panchmahal, Rajkot, Sabarkantha, Surat, Surendranagar and Vadodara. Molded Case Circuit Breaker panels are an essential component of any electrical distribution system. They are designed to protect electrical equipment from short circuits, overloads, and other electrical faults. Shrinath Electric is a leading manufacturer and supplier of molded case circuit breaker panels, providing a range of products that meet the diverse needs of their customers. The Molded Case Circuit Breaker panels manufactured by Shrinath Electric are designed to provide high performance and reliability. They are made using high-quality materials and advanced technology, ensuring that they can withstand the toughest operating conditions. These panels are available in different sizes and specifications, making it easy for customers to find a product that meets their specific requirements.
