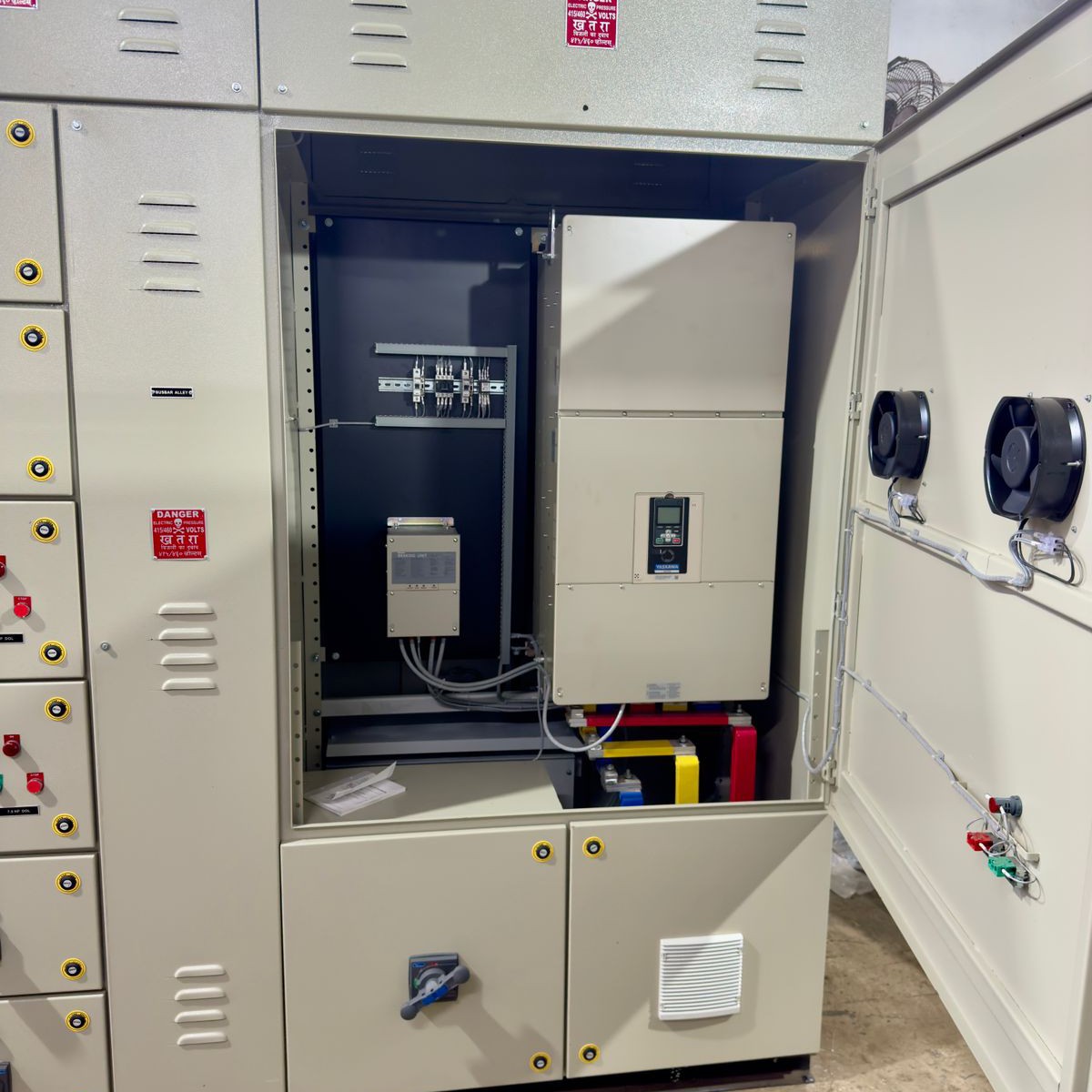

A 1250 Amp MCC (Motor Control Center) Panel is a centralized system for controlling multiple motors in industrial and commercial applications. It houses feeders, starters, protection devices, and monitoring systems, all integrated into one panel, designed to handle up to 1250 Amperes of current.
Here’s a detailed breakdown:
---
🔹 What is an MCC Panel?
An MCC Panel is used for controlling, protecting, and monitoring electric motors. It consists of motor starters, circuit breakers, fuses, contactors, overload relays, and metering devices. A 1250 Amp MCC Panel is designed for heavy-duty industries where multiple large motors are operated simultaneously.
---
🔹 Technical Specifications (Typical)
Rated Current: 1250 Amps
Rated Voltage: 415V ±10% (3 Phase, 50 Hz)
Bus Bar Rating: Copper / Aluminum, 1250 Amps, insulated & color-coded
Bus Bar Support: SMC / DMC, tested for temperature rise and short-circuit
Fault Level: 50 kA / 65 kA / 100 kA (as per requirement)
Ingress Protection: IP42 / IP54 / IP65 (as per site condition)
Enclosure: CRCA sheet steel, powder-coated, floor-mounted
Sections: Draw-out / Non-draw-out type feeders
Cable Entry: Top / Bottom
Control Voltage: 110V / 220V AC or 24V DC
---
🔹 Features
Modular design for easy maintenance and expansion.
Equipped with ACB (Air Circuit Breaker) or MCCB for incomer.
Motor feeders with DOL / Star-Delta / VFD / Soft starter options.
Overload, short-circuit, earth fault protection.
Digital meters for voltage, current, power factor, frequency, kW, kVA, kVAR.
SCADA / PLC / IoT compatibility for remote monitoring (optional).
Energy-efficient design with copper busbars for minimal losses.
---
🔹 Applications
Heavy industries: Cement, Steel, Chemicals, Pharmaceuticals, Paper, Food Processing.
Utilities: Water treatment plants, Sewage plants, HVAC systems.
Large commercial complexes, data centers, hospitals, airports.
